2D to 3D Workflow

2D to 3D Workflow

While SketchUp 2018 introduced the scaled drawing feature, SketchUp 2019 brought a revolutionary 2D to 3D workflow to the table with CAD export to SketchUp out of layout. This means that architects can create 2D drawings at appropriate scales in LayOut and then pull them into SketchUp to further explore designs in 3D.

How to Get Started

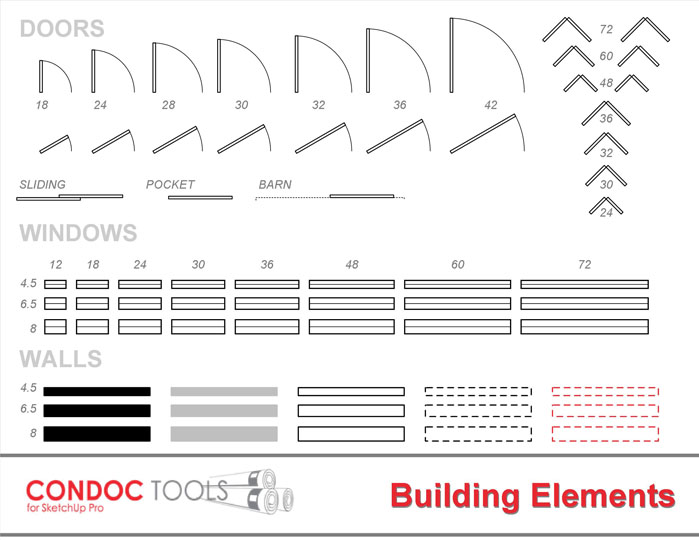

To begin, open Layout and select a template (e.g., 24 x 36). Open the scrapbooks inspector from the Window dropdown > Scrapbooks, Then select the ConDoc 2d scrapbook from the dropdown. The first page contains building elements like doors, windows, and walls that can be utilized.  Subsequent pages contain common furniture and fixture symbols as well as detail assets.



Creating Walls

Creating walls involves activating the Select tool, selecting the desired wall thickness within the ConDoc 2D scrapbook, then placing it on the LayOut presentation.  With the select tool still active

Adding Doors and Windows

Adding doors and windows is a straightforward process. Users can select the appropriate size within the ConDoc 2D scrapbook, then click to place them in the desired position within the LayOut presentation. A simple click and drag operation can position these elements exactly where needed, and use the precise move grip to rotate objects.
Making fine adjustments is a breeze.  Entities can be nudged 1/64" using the arrow keys which nets a 3/4" distance at 1/4" = 1' - 0" scale. Hold the Shift key and nudge with the arrow keys to move by 1/4" increments which nets a 1' distance at 1/4" = 1' - 0" scale.

Other Design Elements

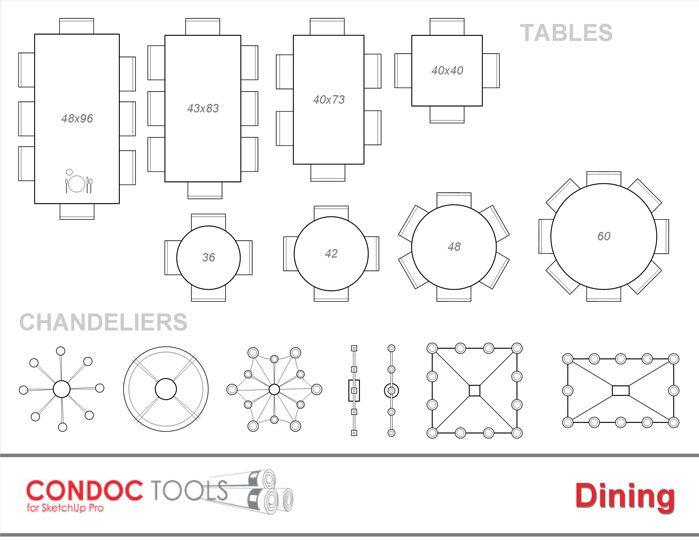

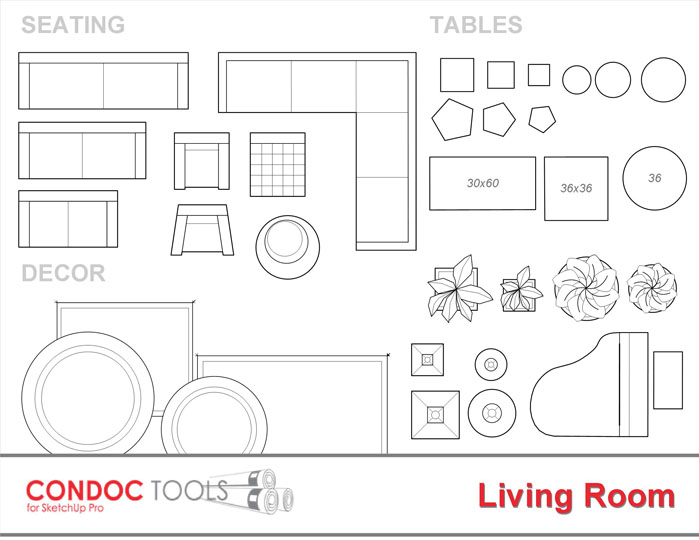

The process offers various symbols and items like tables, chairs, tubs, and more to make the drawing rich and detailed. It's also possible to edit these elements and add personal symbols for a tailored design.

Default Scale

All ConDoc 2D graphics are set to 1/4" = 1' - 0" by default.  The scale can be adjusted depending on the project's requirements by right clicking on a symbol and choose Scale, or select a graphic and change it's scale within the Scaled Drawings inspector.

Real-Life Project Implementation

The process can be employed in real-life projects. For instance, the Elliot street project used simple objects like couches and windows along with walls to create a complete design. Pieces can be moved in and out of scale drawings, but it's important to remember that scale drawings cannot be placed inside other scale drawings.

links to download real projects

Exporting the Drawing

Once the design is ready, it can be exported to a DWG file. To do this, users need to go to File > Export > DWG and select the location and name for the file. It's crucial to set the export to SketchUp, which ensures all entities are sent to model space at the current paper size.  This

PDF Importer

Importing into SketchUp

After exporting the file, users can start a new document in SketchUp and import the AutoCAD file. Depending on the import, the drawing may need to be scaled properly. This can be done by measuring known dimensions in the layout, such as a door opening, and scaling it in SketchUp accordingly.

Conclusion

SketchUp 2019’s new 2D to 3D workflow is a game-changer, bridging the gap that once existed between 2D sketching and 3D modeling. This new process empowers architects and designers to draft in 2D quickly and move seamlessly into 3D, making the design process smoother and more efficient. Whether you're a seasoned professional or just starting on your design journey, the integration between SketchUp and Layout offers a plethora of tools to transform your 2D sketches into 3D marvels. While the steps provided above give an overview, nothing compares to seeing these techniques in action. By watching our detailed tutorial, you'll gain deeper insights and practical guidance. Don't miss out on this opportunity to enhance your skills and unlock the full potential of these robust tools. Click below to watch the tutorial, and embark on an exciting journey to take your designs to the next level!
