ConDoc FLEX Export

ConDoc FLEX Export

Step 4:  ConDoc Drawings Export

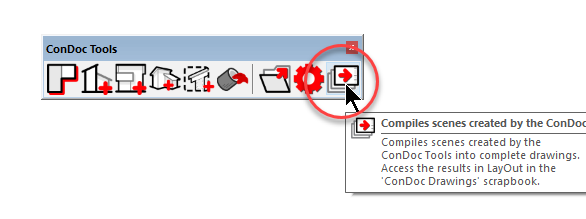

Once you have created your desired Elevation views with the ConDoc Elevation Tool, you can send them to LayOut using the ConDoc Export.  Click the ConDoc Export button at the far right of the ConDoc Toolbar.

Architectural scales can only be assigned to "flat" parallel projection drawings, not Elevation .  For ConDoc Elevation drawings, you can choose a size of Small, Medium, or Large for the exported viewport.  Small Elevation have thin line weights, Large Elevation have wide line weights.  The size does not indicate the actual size of the exported drawing (they are all the same), it relates to the size you intend to make the drawing once it is dropped into your presentation.
