Install the ConDoc Tools for SketchUp Pro Extension

Install the ConDoc Tools Extension

Tutorials



Step 01:  Download

  1. In a web browser, navigate to your profile page and log in
  2. Click the "DOWNLOAD CONDOC TOOLS" button
  3. Save the .rbz to a familiar location, like your desktop


The "DOWNLOAD CONDOC TOOLS" button on your profile page always links to the latest version of the ConDoc Tools extension.

Step 02:  Install

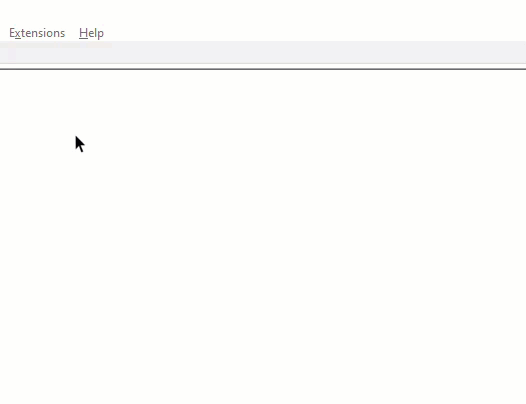

  1. In SketchUp, click on the Extensions drop-down > Extension Manager.
  2. Click the “Install Extension” button in the bottom left corner
  3. Select the ConDocTools.rbz that you just downloaded, click Open
  4. Restart SketchUp

Step 03:  Activate

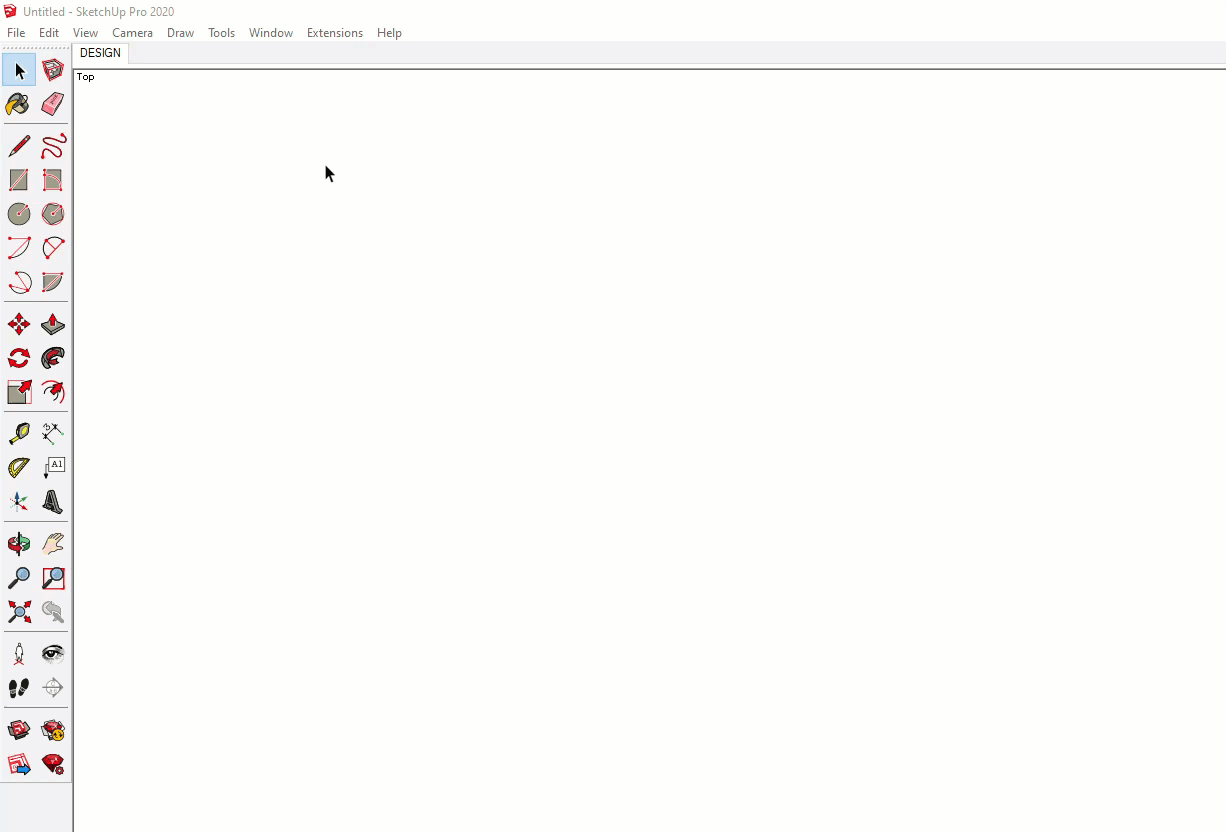

  1. Click on the Extensions drop-down > ConDoc > Activate to open the ConDoc activation dialog.
  2. Use your www.condoctools.com username and password to activate the extension.
Be sure to set your password first.  If you did not receive the reset password email, check your SPAM folder.  If it's nowhere to be found, fill out a ticket  here and we will help you right away.

Next Steps

  1. Watch the tutorials on our Learn page
  2. Subscribe to our YouTube Channel
  3. Buy The SketchUp Workflow for Architecture
